Huixian Xinda Textile Machinery Parts Co., Ltd. provides L24/L25 Weaving Loom Tamper Roller Stan. The guide roller support feet of the weaving machine are divided into left and right (L24 is right-handed, L25 is left-handed), belonging to the winding device components of 1511 and 1515 weaving machines. Their material is gray pig iron (HT15-33), and the size of the support foot base is 65mm in length and 50mm in width. The middle square screw hole is used for fixing M10 * 35mm carriage wire, and the diameter of the semicircle for placing the guide roller is 19mm.
Each 1511/1515 weaving machine uses one L24 and one L25. The GA615 weaving machine uses the G1515-5104 and 5105 guide roller support feet, installed above the bristle roller and fixed below the 4306 chest beam, with one on each side.

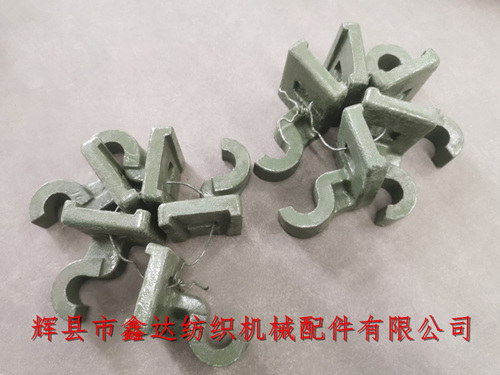

The cast iron parts of the textile machine are an important component of the frame. On the 1511 loom, L24 and L25 are fixed below the P3 crossbeam of the loom. The left side of the picture is L24 (right), and the right side is L25 (left).
Packaging: None, 10 pieces/string. If you need to know the parameter dimensions of guide roller support feet, weaving machine support feet, winding devices, Tamper Roller Stan, or purchase 1515 textile machine accessories - weaving machine winding component products, please contact Mr. Yang from our company for consultation.
