Huixian Xinda Textile Machinery Parts Co., Ltd. provides special weaving machine reeds (stainless steel cylindrical/round rod reed teeth) with different models and specifications. Loom Combing Reed Round Rod Reed Teeth, The main function of the combing reed is to comb the warp yarn of special fabrics. The diameter of the stainless steel round bar has various specifications. Taking the picture as an example, the diameter of the round bar is 2mm, and the upper and lower reed beams are made of aluminum alloy material, with an overall thickness of 8mm.
The spacing between adjacent round bars (reed teeth) can be supplied according to customer requirements, and the sorting reed can assist in arranging the warp yarn in an orderly manner. Height, length, and density are the three important parameters for weaving machine steel reeds,Weave Combing Reed Round Rod Reed Teeth.

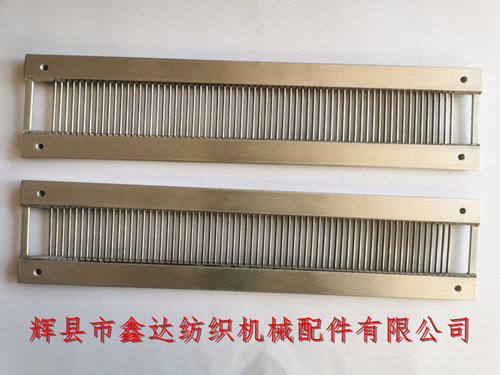

The above picture is an oblique view of the round bar reed, which can also be used as an auxiliary mechanical equipment for weaving. The design of the stainless steel round bar can reduce the frictional resistance between the warp yarn and the steel reed, with a longer service life and less susceptibility to rusting and oxidation.Sorting Reed,Combing Reed,Cylindrical Reed,Weaving Machine Reed.
In general, the minimum order quantity for this type of cylindrical reed, round bar reed, split reed, and comb reed is 10 pieces, packaged in cardboard boxes and woven bags, with a delivery time of 8-12 days. The combination options for the edge width of the reed beam are: 12mm+18mm, 12mm+12mm, 18mm+18mm, depending on the customer's specific needs.
If you need to purchase combing reeds - special weaving machine steel reeds (stainless steel cylindrical/round bar reed teeth) products, please contact Mr. Yang from our company for more information.
