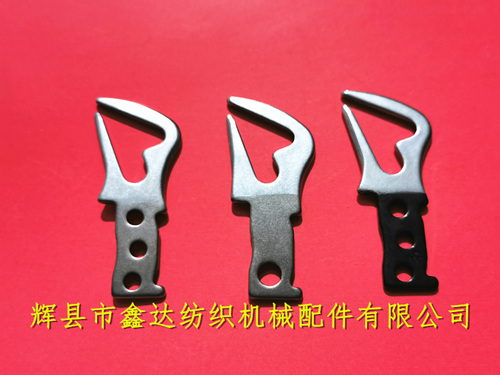

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Sulzer Loom Parts D1 Guide Tooth 911123337, Projectile Loom D1 Guide Tooth PU weaving machine accessories. The Sulzer Gripper weaving machine uses D1 type (part number 911 123 337) and D2 type (part number 911 323 125) Guide Tooth. The outer length of D1 guide teeth is 54.5mm, the width is 23mm, the diameter of the tail circular hole is 5.4mm, the outer width is 10.3mm, and the inner width below the front is 5.9mm (single hole, 3-hole is 6.1mm).
The overall thickness of the guide teeth of the shuttle machine is 2mm, with a heart-shaped front part and a horizontal length of 13.6mm at the width of the inner cavity. The outer left height is 30.5mm, and the outer width below is 18mm.
The outer packaging of the projectile machine guide teeth is wooden boxes, with 500 pieces per box and 6 boxes per box (300 pieces). The weight of a single D1 guide tooth is approximately 9.4 grams per piece for a single hole and 8.5 grams per piece for a 3-hole.
Sulzer D1/D2 Guide tooth, also known as "guide teeth", are part numbers 911123337 for the D1 type of accessories on this Gripper loom.
If you need to purchase accessories for sulzer Projectile looms such as D1 Guide Tooth and D2 Guide teeth, please contact Mr.Yang from our company for consultation. We sincerely welcome your visit.
