Huixian Xinda Textile Machinery Parts Co., Ltd. provides C-38 multi shuttle box cover plates, 214 shuttle warehouse support feet, and automatic grid machine accessories. 214M Dobby and multi Loom Spare Parts, The total length of C-38 shuttle box support feet is 784mm, and the width of the three hole side is 52mm. Each (1 * 4) weaving machine uses one. These multi shuttle support feet are divided into C-38R and C-38L, and their comparison chart is as follows:

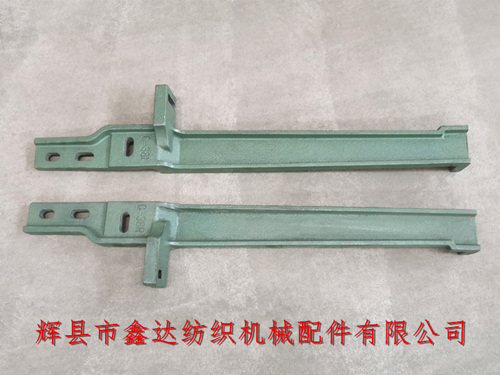

The material of the C-38 multi shuttle box cover plate is gray pig iron HT15-33. The upper part in the picture is the left hand L, and the lower part is the right hand R. Its tail is connected to the C-41 shuttle box head, and the three holes are fixed on the reed frame of the weaving machine. The multi shuttle box structure device is also known as the shuttle magazine, and 1 * 4 indicates that the number of shuttles on one side is 4.
The above picture is a comparison of the front and back of the multi shuttle box shuttle magazine. The ear position of C-38 is equipped with triangular stator ears C-33 (not divided into left and right); The C-38 of 1515 multi shuttle machine accessories, GA615 grid machine accessories, automatic grid accessories, and textile machinery cast iron parts is the main component of the multi shuttle box structure and a commonly used vulnerable accessory.
The rear of the shuttle box cover C-38 (as shown on the left in the above picture) is in a right angle shape and has two fixing holes. The above picture is a top view of the front and back of the multi shuttle grid machine accessory C-38. 214M-C/1 * 4 grid machine accessories, 214M-A is a multi arm double drum accessory, 214M-B is the main transmission structure of the automatic grid device, and 214M-X is an optional part of the automatic multi shuttle grid machine.Shuttle Box Cover, Automatic Loom Accessories,Grid Machine Parts,Grid Loom.
If you need to purchase shuttle box cover plates, 214 shuttle machine shuttle warehouses, 1515 automatic weaving machine accessories, automatic grid machine accessories and other products, please contact Mr. Yang from our company for negotiation. Customers from all over the city are welcome to call for details.
