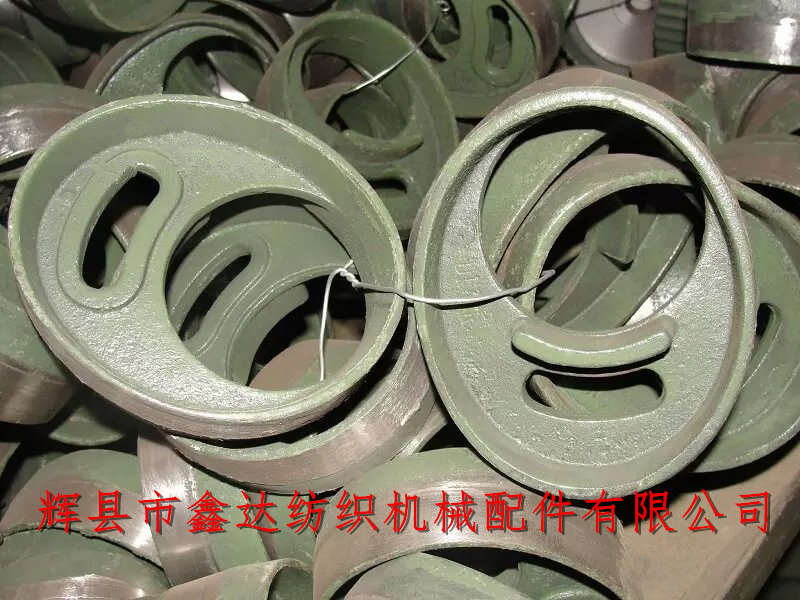

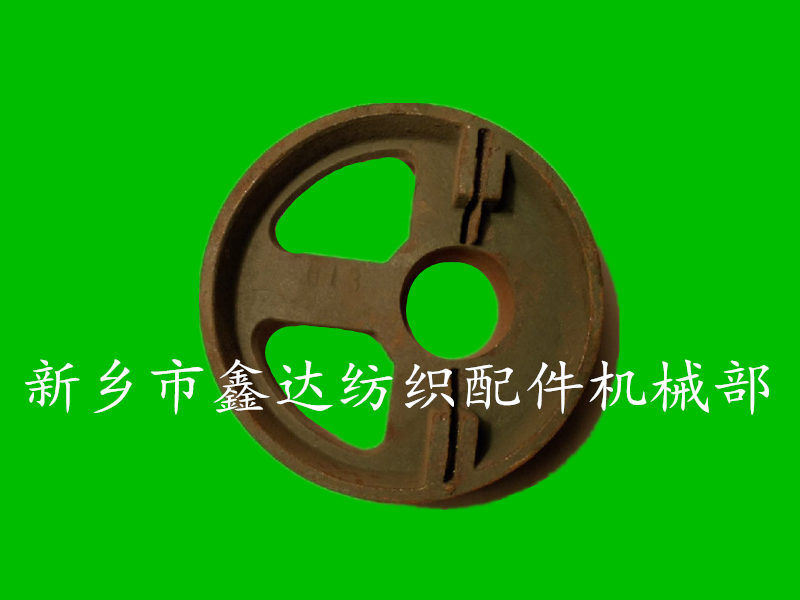

Our company provides various cams for looms, including shuttle loom cams. The smooth cam D13 length of GA615 loom is 138mm, fixed on D7 or 3210 on the crankshaft of loom. 1515 and GA615 looms have the same smooth motion cam. The material is HT15-33 pig iron. The surface of D13Y fittings is not allowed to be notched or cracked. It can be used normally when the wear is less than 1.6mm. Ten pieces/bundles can be used normally. The round hole holds the gear table of crankshaft. The arc groove is used to fix the screw of carriage (semi-round head and square neck).
The smooth motion cam used in GA615 loom can also be used as rapier loom of GA747 series.
Cam for O13 Warp Breaking and Stopping Device of Loom

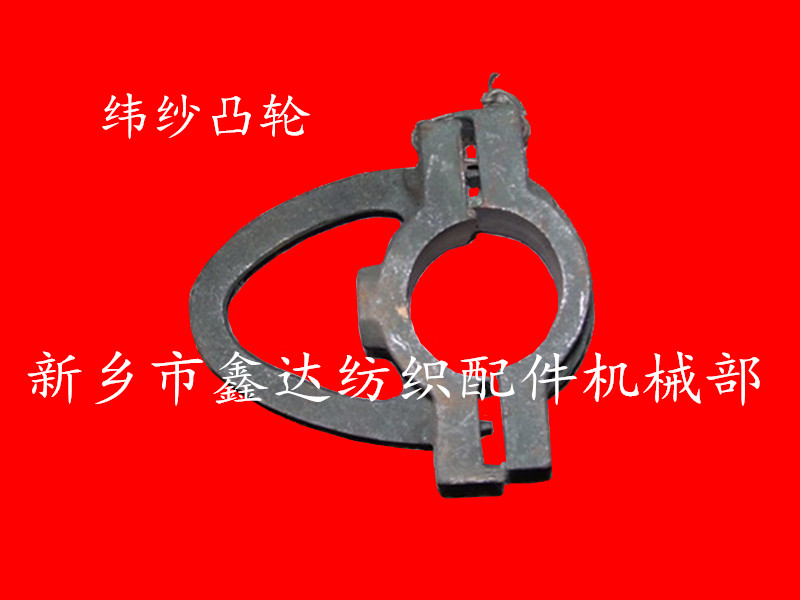

The weft motion cam E4T used in GA615 loom is 119mm in length and 40mm in diameter. It is connected with the tread axle of loom 3301.
Cams of various types and specifications and motion cams in textile machinery accessories are mainly used to change the trajectory of transmission components and generate power output.
Shuttle loom cam, TW 153 inch scissors cam, multi-color cam, monochrome cam.
GA615 1X4 multi-shuttle loom cam, textile machine cam processing, loom smooth motion cam, shuttle loom arc cam, peach cam wholesale production - Xinda textile machinery accessories.
