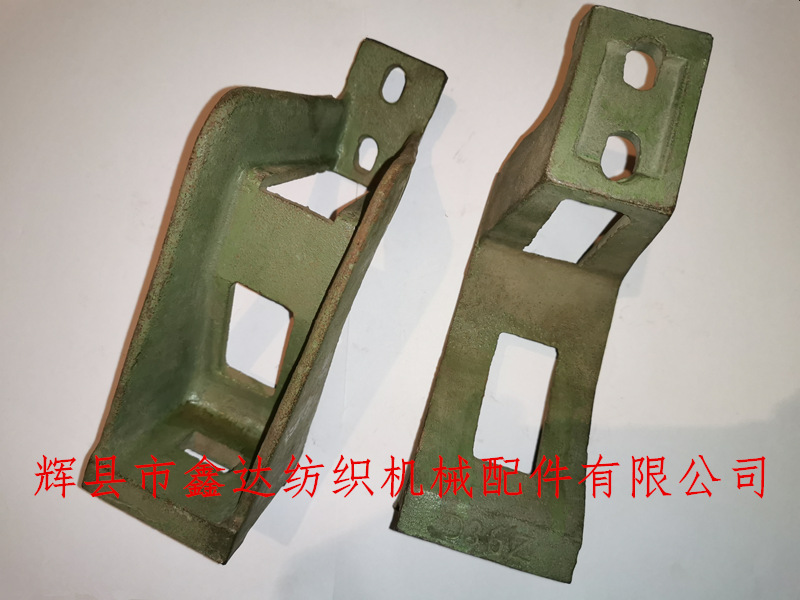

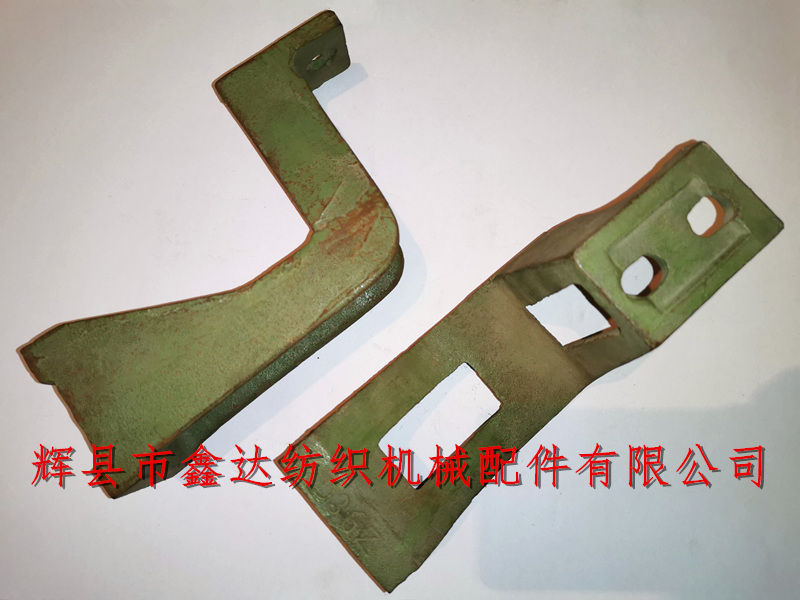

Our company provides D36 cotton loom accessories,D36 Towel Loom Cover Feet Parts, towel loom cover legs, 1511 single beam loom bent shaft gear cover legs, made of gray iron, 18.3cm in length and 64mm in thickness. Each automatic shuttle changing loom uses one piece, and the weight of a single accessory is about 1.4-1.5kg, which is connected with P2 of loom wall panel.Cotton loom accessories,1511 cover legs,1515 towel loom parts.

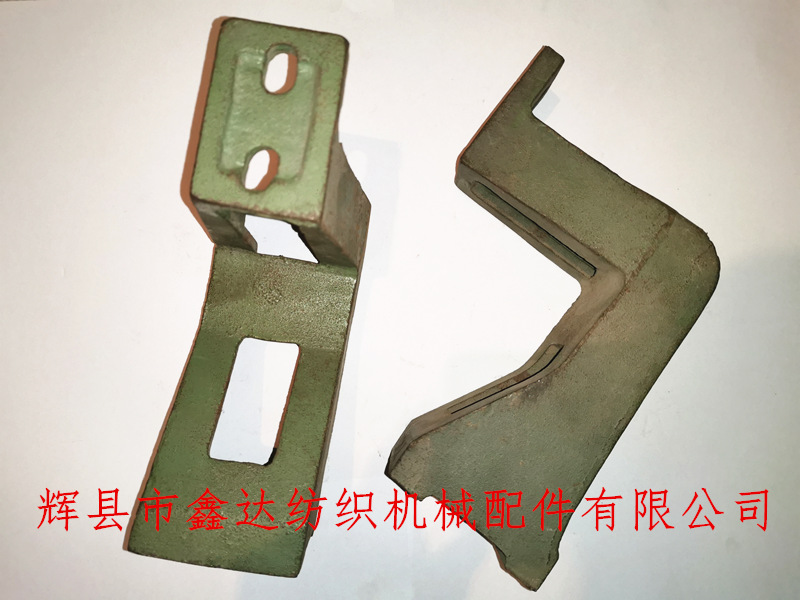

The above figure is the side view of the leg of the d36y curved shaft gear cover. The two holes above are connected with the side of the d34 cover to fix the cover d34 of the D7 gear.

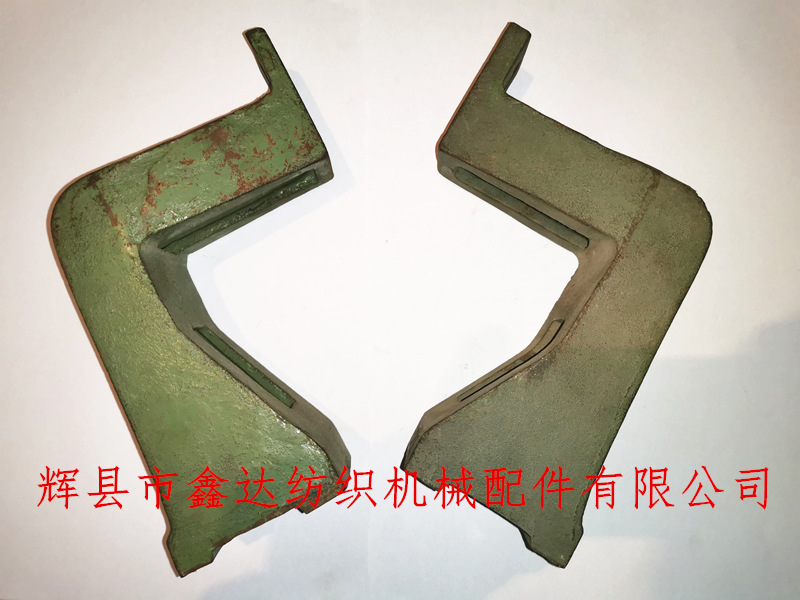

Textile accessories - d36y and d36z are only changed at right angles, with slightly different shapes. The center distance between d34 hole and P2 hole of the base has not changed, so the accessories can be used interchangeably.
Towel loom part D36 belongs to textile sand casting part, which does not need to be processed by lathe. The screws used for the installation of cover feet are all half round head square neck screws M12 * 45, and the products are not divided into left hand and right hand.Cotton loom accessories, cover legs, towel loom parts.
Initial order quantity: more than 10, default payment to arrange production, and timely delivery. Please contact our company for the detailed purchase of 1511 cotton loom parts and narrow 44 inch towel machine parts.
