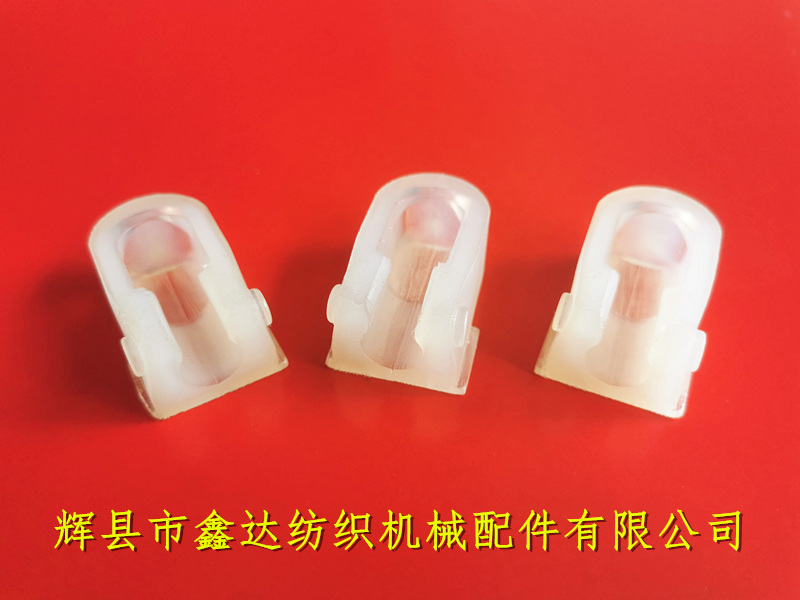

Huixian Xinda Textile Machinery Accessories provides PU nylon card holders (with edges) for export type photoelectric coreless shuttles and silk weaving machines.Photoelectric Coreless Shuttle Clamp Head II, The coreless card holders come in two specifications: compatible with coreless shuttles such as TS-7, with a clamp length of 44.3 millimeters and a bottom width of 27 millimeters and a total height of 23 millimeters for edge clamps; The total length of the nylon clamp used for the coreless photoelectric shuttle of the silk weaving machine is 40.6mm, the overall width is 22.5mm, the width of the bottom wing of the edge clamp is 26.4mm, the inner diameter of the circular fixed coreless tube neck position is 11mm, and the length of the circular opening hole is 18mm.

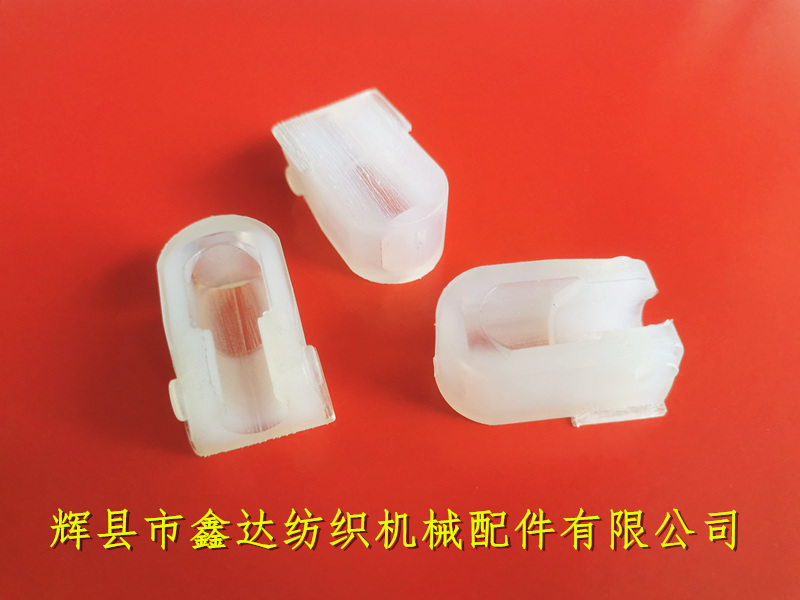

There are raised rubber piers on both sides (diameter 6.8mm), with a length of 16mm and a thickness of 2mm on the bottom edge. The above picture shows the side and back views of the PU nylon card holder with edges. The upper plane width of the nylon clamp is 9.6 millimeters and 13.8 millimeters respectively, and the depth of the tail cavity is 16.5 millimeters.
The clamps used for the 24 # shuttle and the 25 # wooden shuttle of the silk weaving machine are the same. The nylon clamps belong to textile plastic parts and are made of transparent PU material, which has good toughness and elasticity, and a longer service life.
Normally, the packaging for the PU nylon card holder (with edges) of the photoelectric coreless shuttle with a clamp silk weaving machine is a transparent self sealing bag, with 100 pieces per bag. The individual weight of this clamp is approximately 11.5 grams;Photoelectric Coreless Shuttle Clamp Head II, If you need to purchase collets, nylon card holders, coreless collets, edge collets, and plastic parts for silk weaving machine accessories, please contact Mr. Yang from our company for more information.
