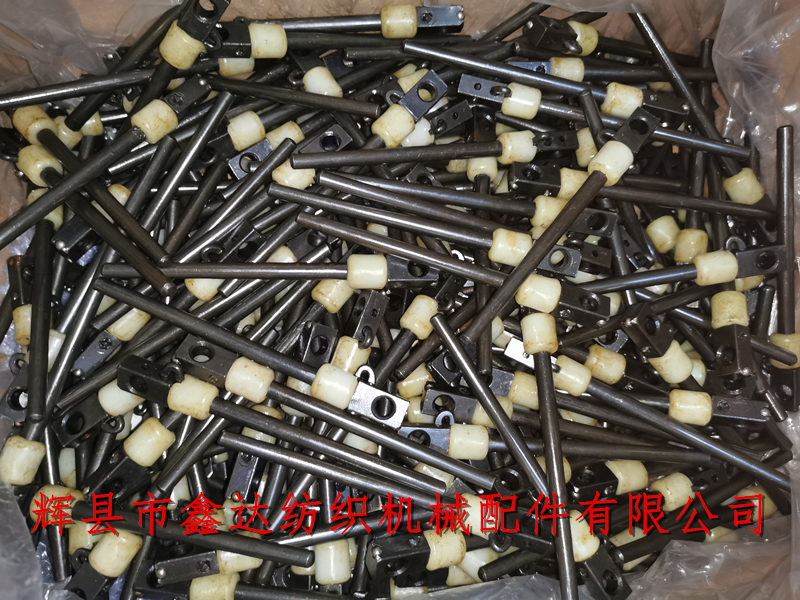

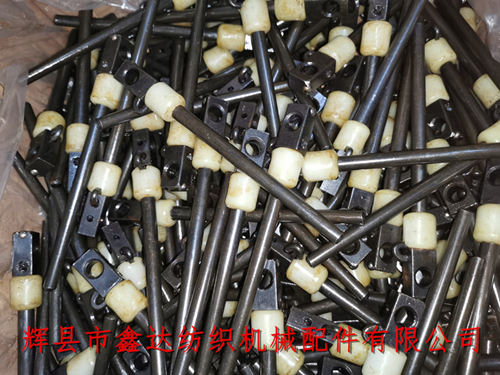

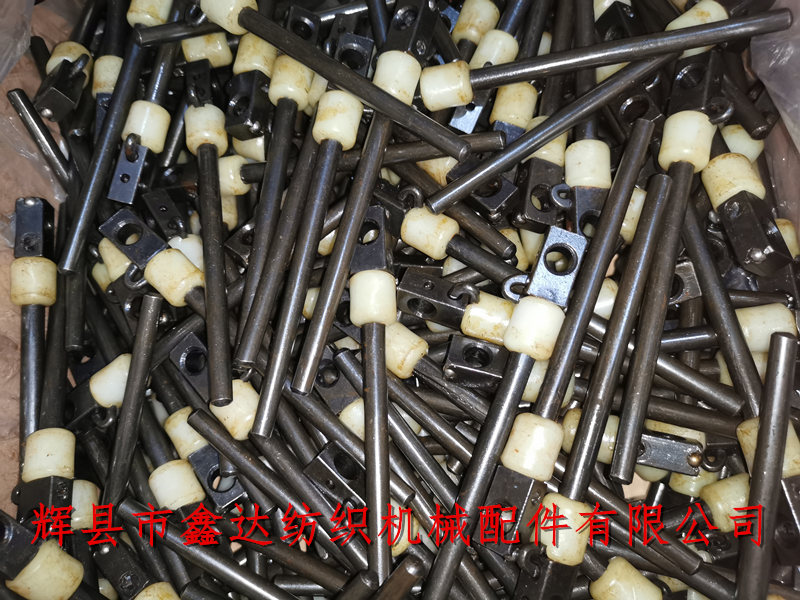

Huixian Xinda Textile machinery accessories long-term supply of shuttle Tongue textile machinery equipment accessories. The Shuttle Tongue is also known as shuttle drill and shuttle collar. It can be applied to cotton loom shuttles of different materials (nylon, composite and wood). The total length of the textile Shuttle Tongue is 14.4cm and the inner hole is 8.1mm. It is fixed at the bottom of the shuttle by the shuttle column. The rectangular head of the Shuttle Tongue of textile machinery equipment is 9.7mm wide and 13mm high, The length is 23mm, and a steel ball is embedded below the root to pull out the Shuttle Tongue when installing or replacing the weft bobbin. The number of Shuttle Tongues in each box is 500. The Shuttle Tongue manufacturer adopts the forging process, and the surface is phosphated into black.
Textile Shuttle Tongue belongs to textile hardware products. Each shuttle uses one Shuttle Tongue. The quantity used on each loom is determined by the size of the shuttle shed. The shuttle shed containing 10 shuttles is generally used for automatic shuttle change.
Shuttle core textile machinery accessories are vulnerable products, which is related to the high frequency of use of shuttle accessories. The weight of a single Shuttle Tongues is about 0.065kg.
In addition, according to different shuttle designs, there are shuttle accessories such as shuttle core with reed, split Shuttle Tongue, Shuttle Tongue without white nylon sleeve, steel wire shuttle core, etc. if you need shuttle core textile machinery accessories products, please contact Mr. Yang of our company!
