Huixian Xinda Textile Machinery Parts Co., Ltd. has been providing 56/75 inch 1515/GA615 weaving machine accessories for a long time, including the shuttle box bottom plate 3307. The shuttle box bottom plate is a key component of the weaving machine shuttle box, which is the parking position of the shuttle before and after picking up the shuttle. The leather knot (picking knot) of the weaving machine slides along the upper plane of the bottom plate to collide with the shuttle. The length of the 3307 shuttle box bottom plate is 581mm, the width is 79mm, and the middle is the slide of the picking plate.

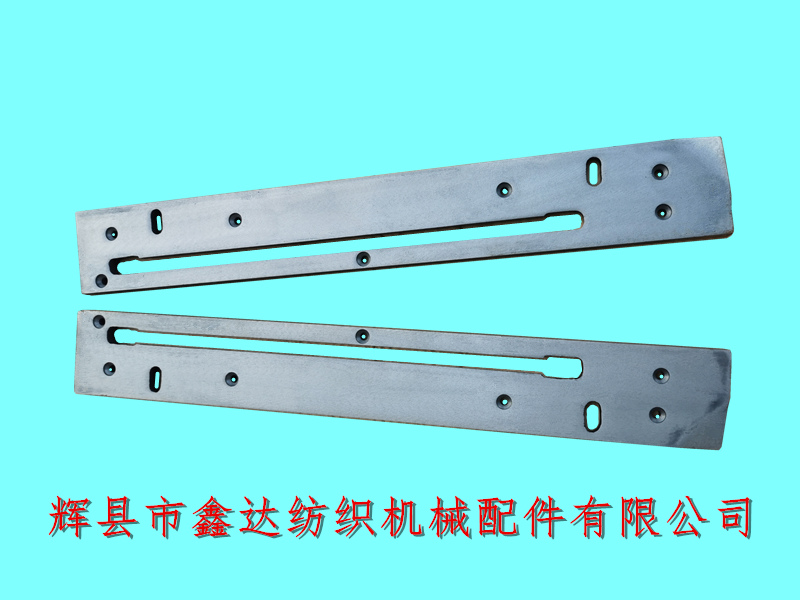

The above picture shows a pair of shuttle box bottom plates, namely the left and right hands. The identification is based on the slope direction next to the hole, and refers to the position of the shuttle chute. The usage of the accessory shuttle box bottom plate 3307 for the 56/75 inch 1515/GA615 loom is 2 per loom (1 pair, 1 left hand, 1 right hand), and the specifications of the 3307 shuttle box bottom plate are the same for looms with door widths of 56 inches, 63 inches, 72 inches, and 75 inches.

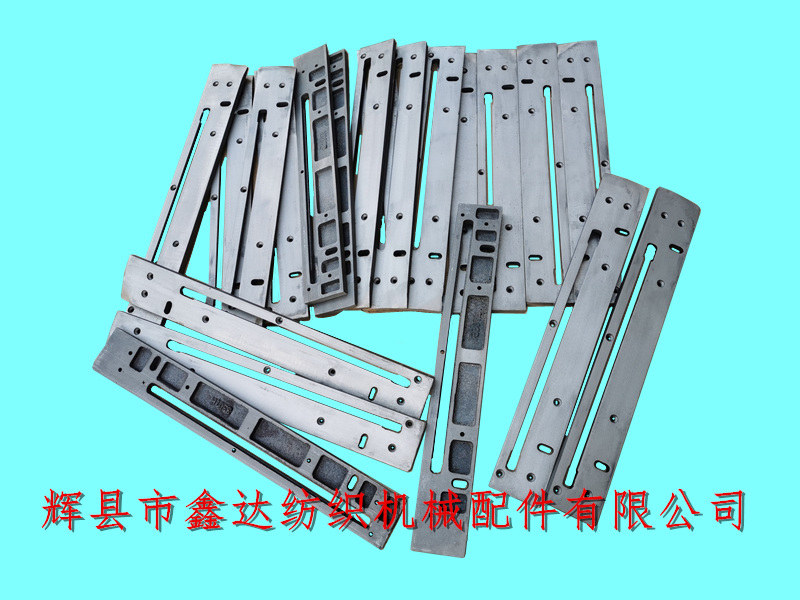

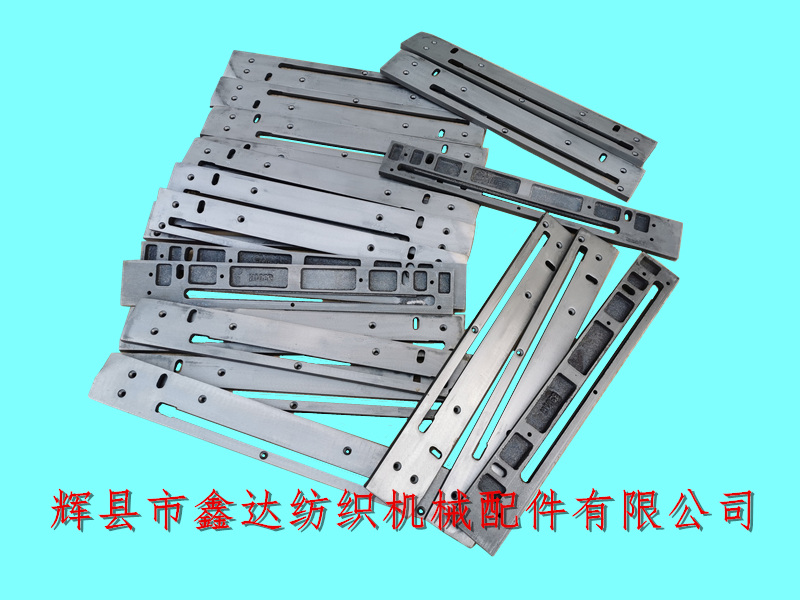

There are 7 fixing holes on the bottom plate of each 3307 shuttle box, which are usually fixed to the reed frame wood (dragon) of the weaving machine using M6X50 or M6X60 countersunk wood screws. The grooves on the back are used to increase its structural strength and reduce resonance.
The packaging of the shuttle box bottom plate is 5 pieces per bundle, for the same hand, with a single weight of 2.65 kilograms; If you need to purchase 1515 shuttle box bottom plate, GA615 shuttle box bottom plate, and other shuttle box accessories, please contact Mr. Yang from our company for consultation!
