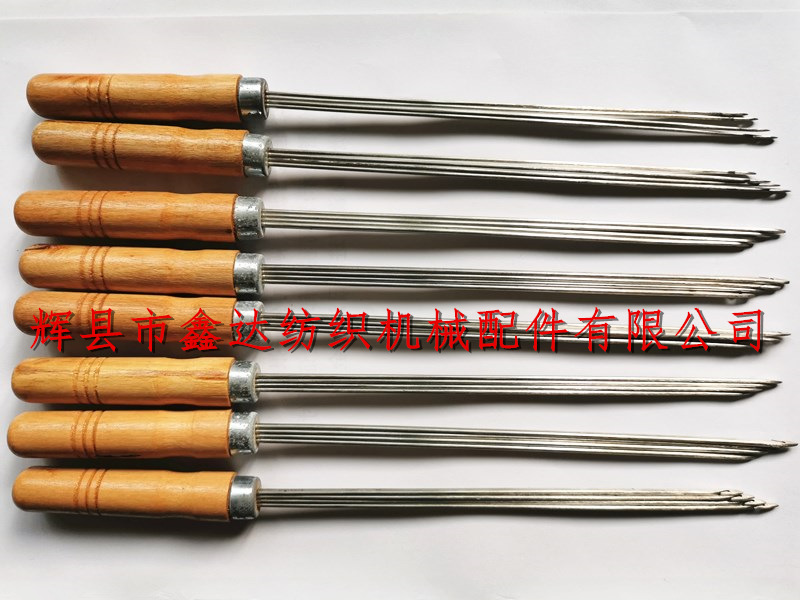

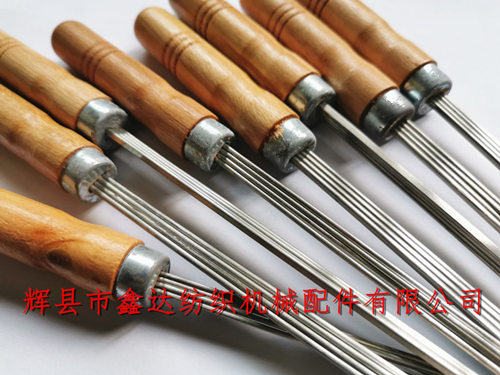

Textile Drawing-in hook with wooden handle_ Textile heald piercing Crochet_ The oblique head palm wire Crochet is a common tool in the weaving production process. It is a professional textile tool needed to pull the yarn through the brown silk hole (heald hole) in the weaving preparation process. They are divided into various specifications and lengths, which are generally 26.5cm. The textile heald hook is fixed with a wooden handle, and four crochets are arranged with oblique ends.
According to the arrangement of the needle heads of the heald threading hook, the iron cap hoop wooden handle can be divided into: flat end and oblique head; according to the number of crochets, it can be divided into single crochet, four heald piercing crochet, double thread taking out crochet, etc. in different models, due to the different number of heald frames, different length of heald crochets should be used.

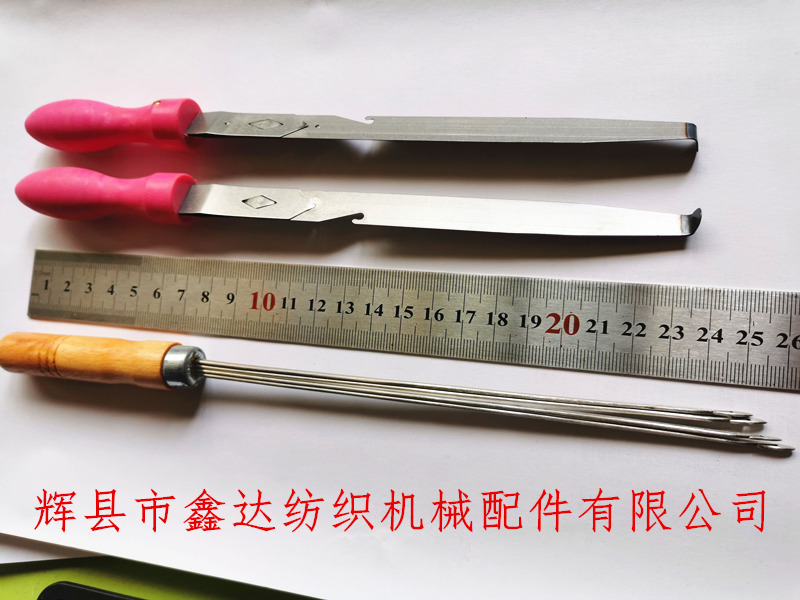

The pink textile tool in the picture above is a reed inserting knife, also known as a reed knife. Because the warp yarn is led through the reed of the reed, the length is about 23.5 cm; the length of the textile heald removal Crochet is about 26.5 cm, of which the length of the wooden handle is 82.5 mm and the diameter is 16 mm.
There are many kinds of textile tools for weaving. When using, the four pieces need to be separated to facilitate the hook line traction and improve the work efficiency.

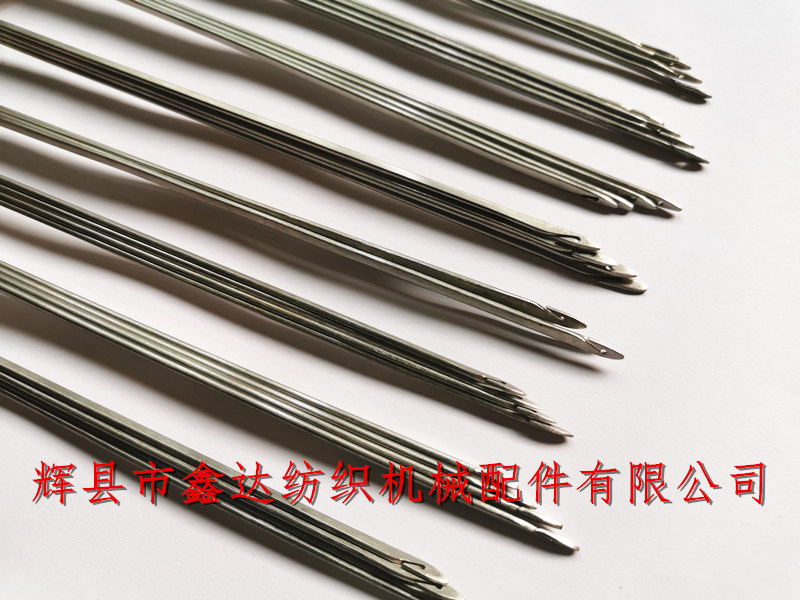

It can also be used for folk hand weaving or ethnic weaving. The above picture shows the detail photo of the inclined head of the crochet. When it is necessary to put the warp into the chute to hook it, pull back to take the warp through the heald eye of palm silk. Looking for textile hardware accessories, shuttle textile tools and other products can contact our company.
