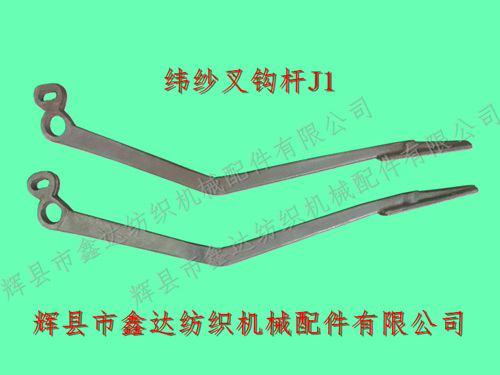

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511 type 44" Loom accessory J1 weft Hammer Lever, 44 inch small weaving machine accessories J1 weft fork hook rod, 1511 Textile Machine Parts . The upper part of 1511-J1 weft fork hook rod is connected to J2 weft fork hook pointing to J32 weft fork, and the lower plane is in contact with E4 weft cam on the weaving machine tread shaft. The weft fork hook rod used in the 44 inch loom is not divided into left and right hands, and the straight distance between the center of the circular hole at the tail and the front of the J1 friction surface is 615 millimeters.
The material of the J1 Weft Hammer Lever is gray pig iron HT15-32, and each weaving machine uses one. It is installed below the chest beam of a 44 inch small looms.
The shape of the front part of J1 resembles a duckbill, and the circular hole on top is a refueling hole used for daily maintenance of this weaving machine accessory.
J1 is the intermediate connecting piece between 1511-E4 and J2, following the continuous rotation of the weft cam E4, its front part undergoes up and down reciprocating motion, providing power support to the weft fork hook J2. J1 is a 1511 type weaving machine accessory, which, together with J32 weft fork and other 44 inch accessories or hooks, forms the self stopping device for the loom's broken weft (weft fork type).
If you need to purchase accessories for the 1511 model loom machine, including cast iron parts, hardware parts, cast steel parts, leather parts, rubber parts and other products, Loom Accessory J1 Weft Hammer Lever,please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit.
