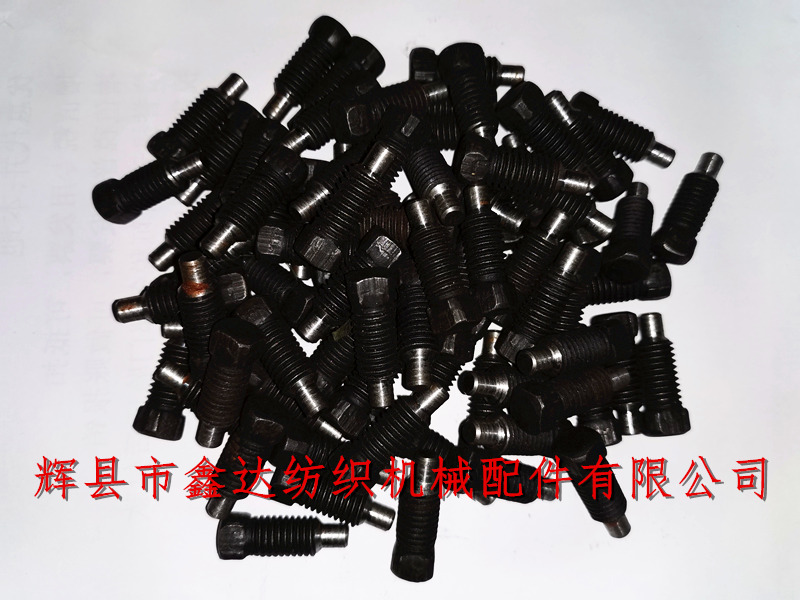

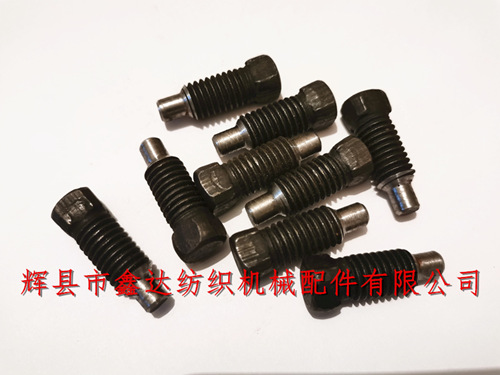

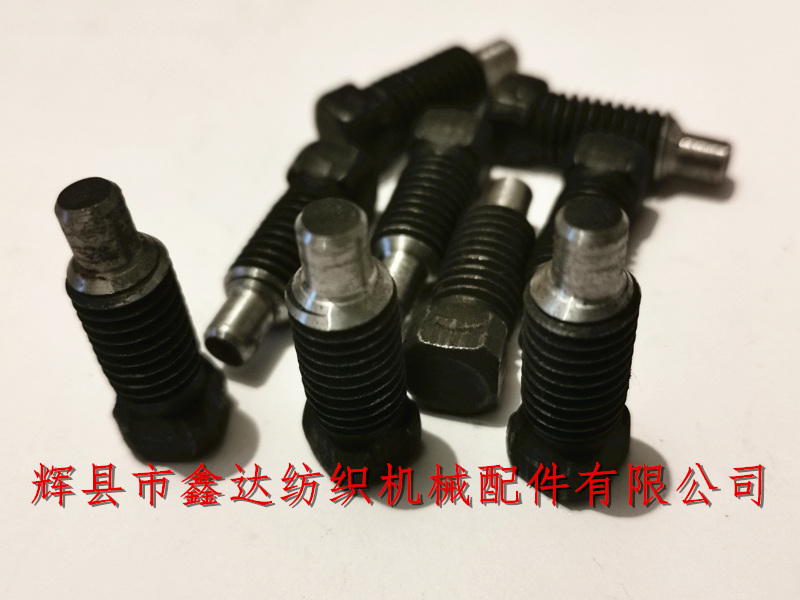

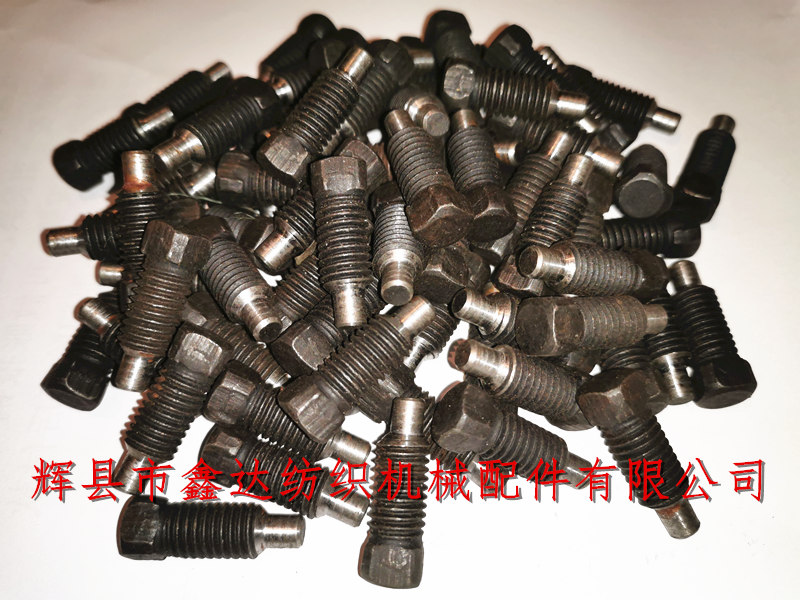

Our company provides the special screw B63 head screw for textile Hardware loom, which is fixed on the spiral wheel B19 of loom (let off worm), Textile Hardware Let-off Worm Set Screw B63,the surface is blackened, material: Steel 20, thickness of square head is 6.5mm, total length is 31mm, M8 thread, the head end of special screw B63 for loom must be aligned with the small hole on the let off side axle B17 of loom, otherwise worm B19 is easy to move during operation, and the head of textile hardware accessories is easy to move The screw can also be used to fix the reed of the rapier.
B63 special screw for weaving machine has a diameter of 5.6mm, a height of 6.5mm and a square head of 1cm. The processing technology and processing technology of special screws for textile Hardware generally have special requirements, which will be strengthened according to their different purposes and dual parts.Textile Hardware Screw,B63,Worm set screw.
The packing of loom support screw B63 is transparent bag, 200 pieces in each bag, 1 piece for each loom (the quantity for fixing reed of GA74 series rapier loom shall be determined according to the length of reed), and the starting quantity is 100 pieces.Textile Hardware Let-off Worm Set Screw B63.
There are many kinds of textile hardware screws, from weaving machine, spinning machine (roving machine, spinning machine, drawing frame, bobbin car, twister, double twister, carding machine, flower cleaner, etc.) to auxiliary mechanical equipment warping machine, coiler, dyeing machine, etc.
If textile enterprises need to buy accessories such as special screws for weaving machine,Textile Hardware Screw,B63,Worm set screw,buttress screws, and textile hardware screws,please contact our company for consultation. B63 buttress screws for weaving machine can also be used for jacking screws (set screws) of various machines.
