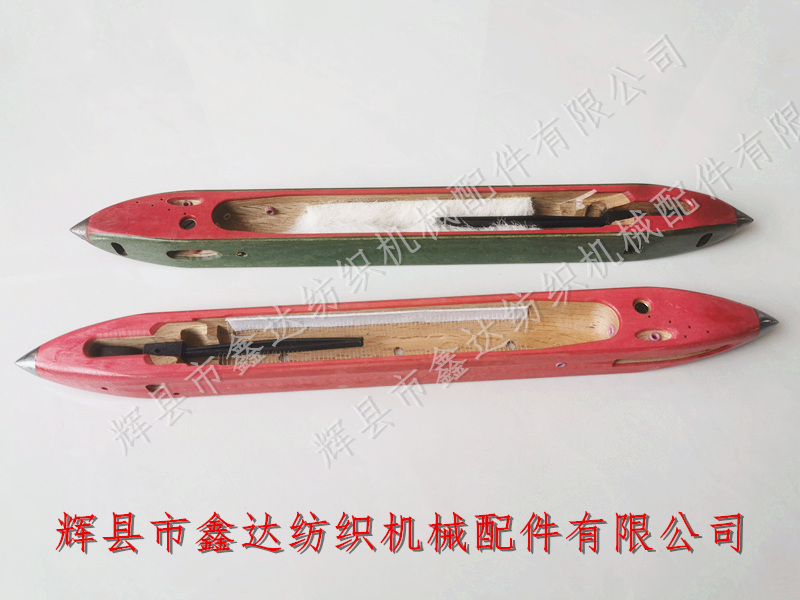

Huixian Xinda Textile Machinery Accessories provides 368 silk weaving machine shuttle with four sides of steel paper wood shuttle (with core cracking type). The total length of this silk shuttle and silk weaving machine wood shuttle is 368 millimeters, the width of the shuttle bottom is 34.5mm, the height of the shuttle body is 25mm (shuttle core end), the width of the inner cavity is 25.7mm, the inner diameter of the tube weft groove abacus bead is 19.3 millimeters, and the total length of the wood shuttle body is 338 millimeters (excluding the length of the shuttle tip). The dimensions of the shuttle and the parameters of the wooden shuttle mentioned above are obtained from physical measurements. The main material is Qinggang wood, with red and green colored steel paper adhered on all four sides.

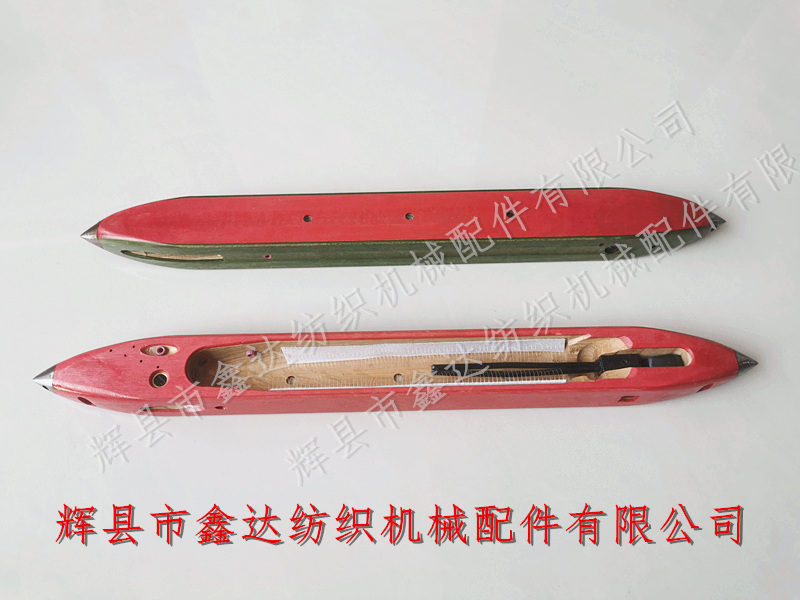

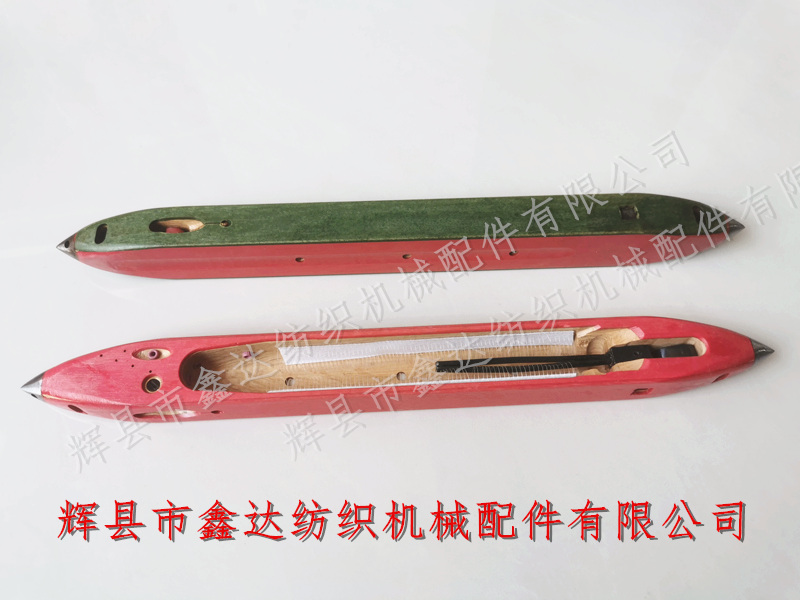

The above figure shows the front and back views of the 368 silk weaving machine shuttle; The total length of the split type shuttle core is 109mm, the width of the middle split position is 7mm, the front side length of the shuttle core rectangular head is 9mm, and the length is 18mm.
The red nylon flexible assembly of the shuttle consists of three ceramic rings, and the shuttle tip is a clamp nut style. This 368 shuttle is suitable for use with small round head tubes with a length of 165-180mm. The shuttle uses two specifications of ceramic eyes-5 * 7mm (3 pieces) and 6mm * 6mm (1 piece), as shown in the following picture:
The flexible fixing screw is made of copper nut. This wooden shuttle is used for various types of silk weaving machines such as K251, K72, K274, etc. It has multiple methods of inserting and threading weft, and can be selected according to the actual weft tension requirements during use. The weight of a single shuttle is 235 grams per handle for the red ones on all sides and 226 grams per handle for the green ones on both sides.

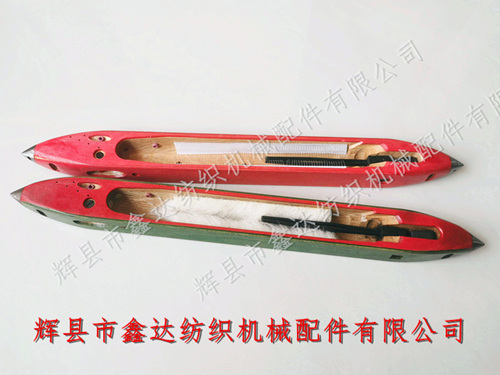

368 silk weaving machine shuttle, four sided steel paper wood shuttle (with core cracking type): The shuttle cavity has adhesive nylon silk shuttle fur or rabbit fur, which is used to increase the resistance when the weft yarn detaches and reduce the occurrence of weft shrinkage phenomenon; If you need to purchase silk weaving shuttles, silk wood shuttles, silk weaving machine shuttles, core shuttles, coreless wood shuttles and other products, you can contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit and guidance.
