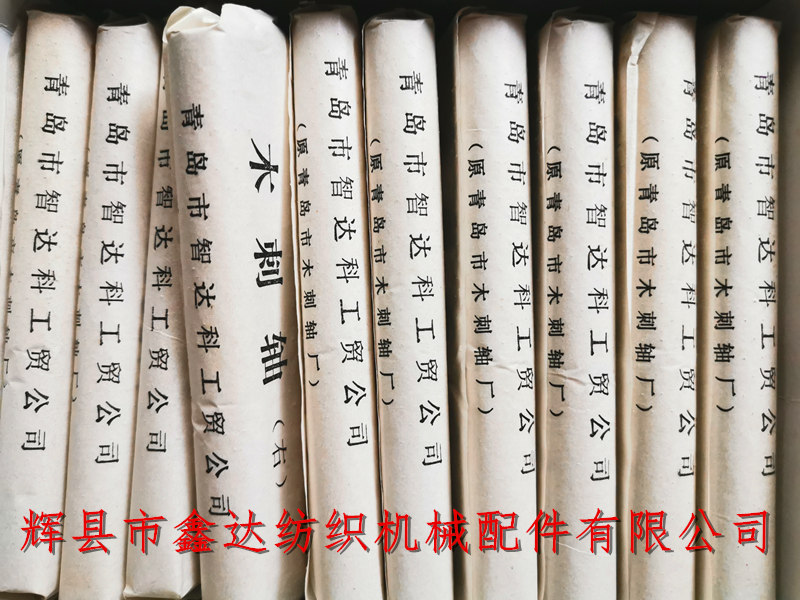

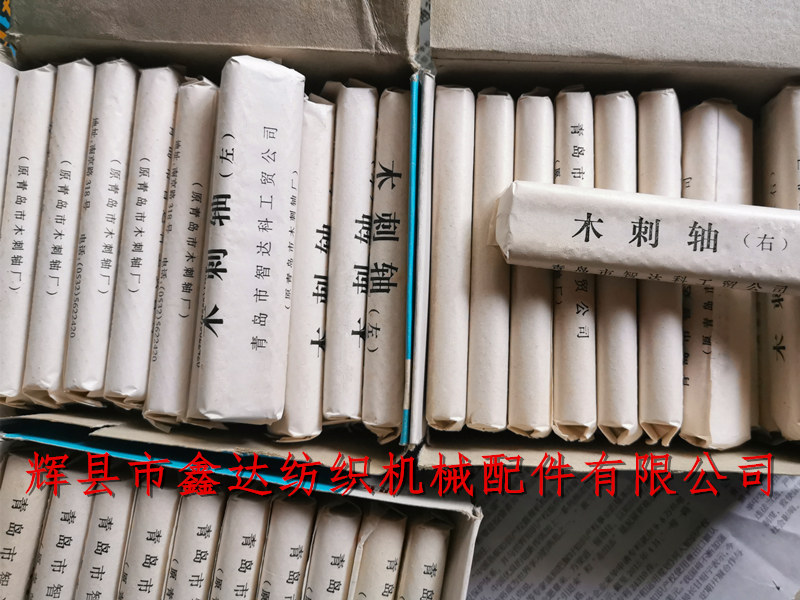

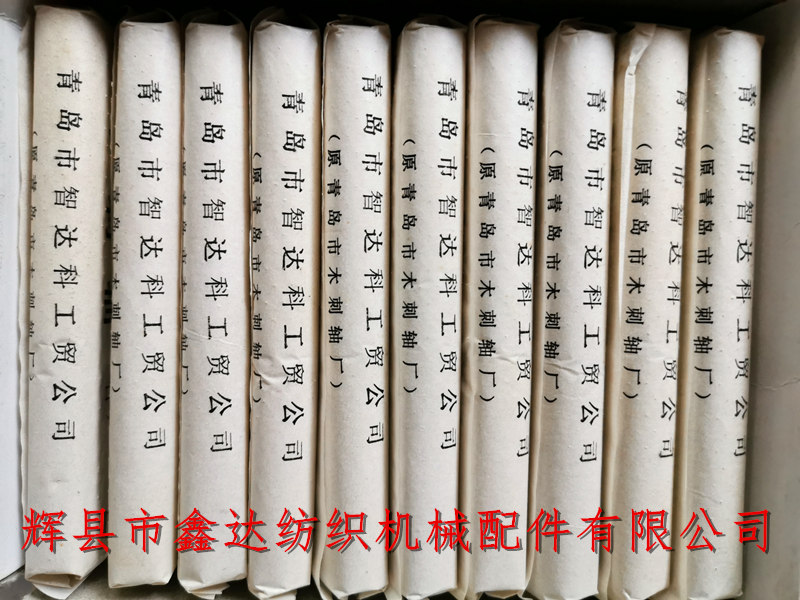

Our company provides all kinds of shuttle textile accessories,Loom Spindles,Textile Side Spindles Parts,all the year round. There are 20 pairs of wooden spindles in each box, each of which is divided into four sections, each of which is composed of two long and short shafts. The height of the spindles is 0.4mm, 0.6mm and 0.8mm. The spiral direction of the spindles can distinguish the left and right hands. The 1511 type wooden spindles are used in the old-fashioned shuttle loom. It is suitable for weaving small canvas, twill and plain cloth , clothing fabrics and other products.
Textile equipment - wooden spindles are fixed on spindle L54 (5-point diameter), as shown in the figure above, each spindle is fixed with two sections, and each side support box (seat) uses one pair of wooden spindles.
Brand: Zhinv, textile wooden spindles are used on both sides of the cloth surface of the loom to make the cloth surface tighten laterally and auxiliary coiling device to make the coiling smooth.
As shown in the figure above, the left-hand and right-hand spindles are respectively installed on the left and right sides of the loom. Each loom uses two pairs, which are suitable for 1511 42 inch, 44 inch and 56 inch (single beam) looms.

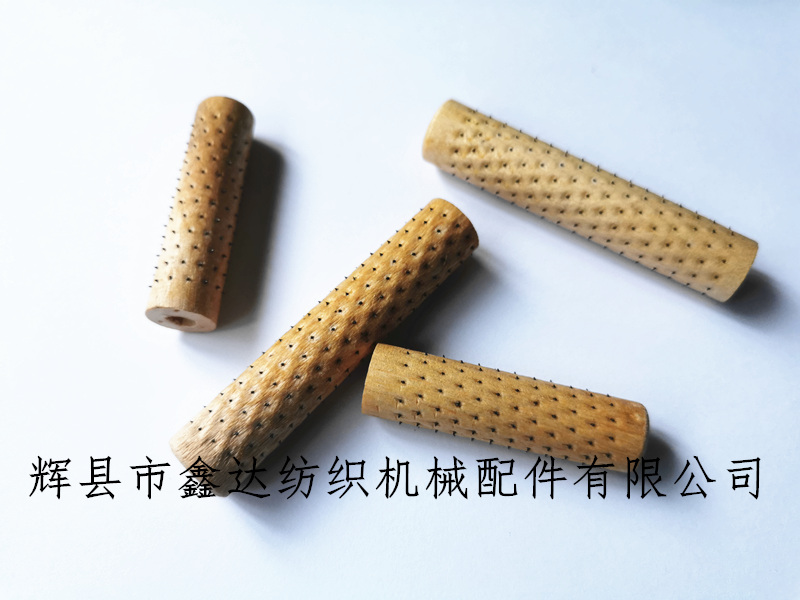

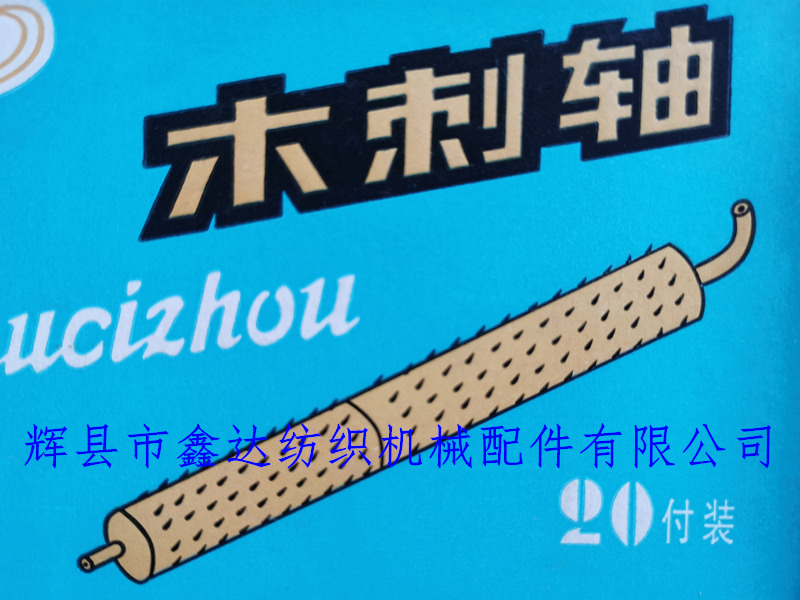

The length of each pair of wooden spindles is about 108mm, and the shape of spindles of textile machine is as follows:
If you need to buy Textile equipment, loom wooden spindles, side spindles, etc., please contact - Huixian Xinda Textile Machinery Accessories Co., Ltd., we sincerely welcome you!
