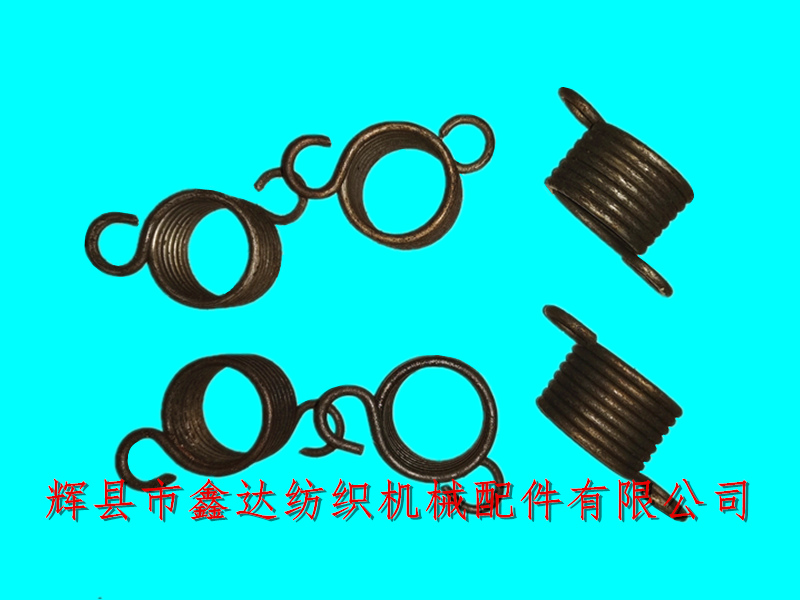

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511/GA615 loom accessories Textile Loom Parts buffer spring F109/F110. The loom spring F109/110 is made of 3.5mm diameter spring steel wire material. The inner ring diameter is 32mm, and the number of turns is 7. Each 1511/1515/GA615 loom uses one buffer spring F109 or F110 on both sides of the wall plate. The buffer spring F109 or F110 is installed in the inner cavity of F107 or F108 buffer spring plate, and connected with F103 spring ring. The shuttle loom spring F109/F110 is a torsion spring and is a general accessory of the shuttle loom. The common vulnerable part is the picking part, while other vulnerable springs are usually leaf springs, such as K53 used for the back plate of the shuttle box and K54 stop latch spring near the impact nozzle.
The loom spring F109/F110 is an important component of the three wheel buffering picking of the loom, which is used for buffering and resetting during the picking action. The 1511/GA615 loom accessory does not change its size based on the size of the machine door.
The difference between F109 buffer spring and F110 buffer spring lies in the winding direction of the spring steel wire, which constitutes a left and right hand. Each loom uses one pair, which is commonly used for shuttle looms with 44 inch, 52 inch, 54 inch, 28 inch, 32 inch, 36 inch, 56 inch, 75 inch, 100 inch and 110 inch door frames.

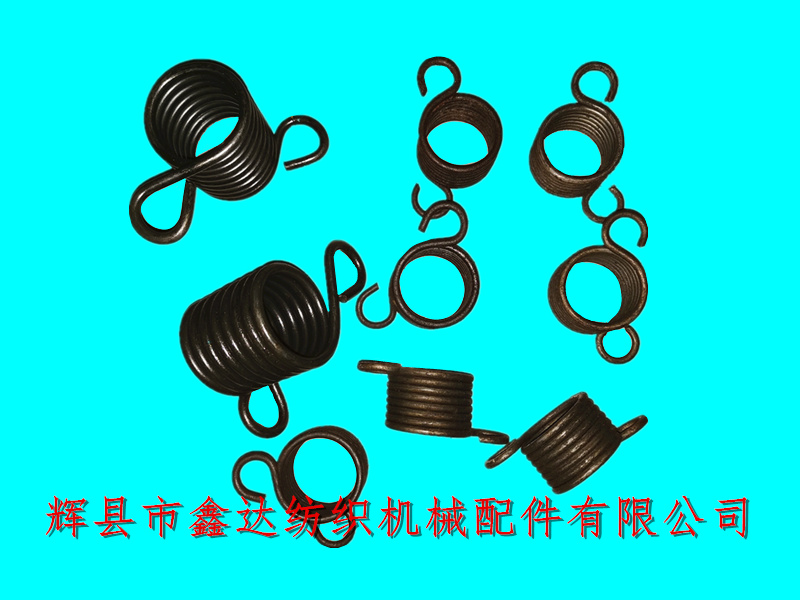

The two big springs at the upper left corner are the loom shuttle plate springs F34 and F35, and the right side is the F109 and F110 buffer springs. If you need to purchase or consult textile springs, Textile Loom Parts, 1511 loom springs, GA615 buffer springs, 1515 loom accessories, please contact Mr. Yang of "Xinda Textile Accessories"!
