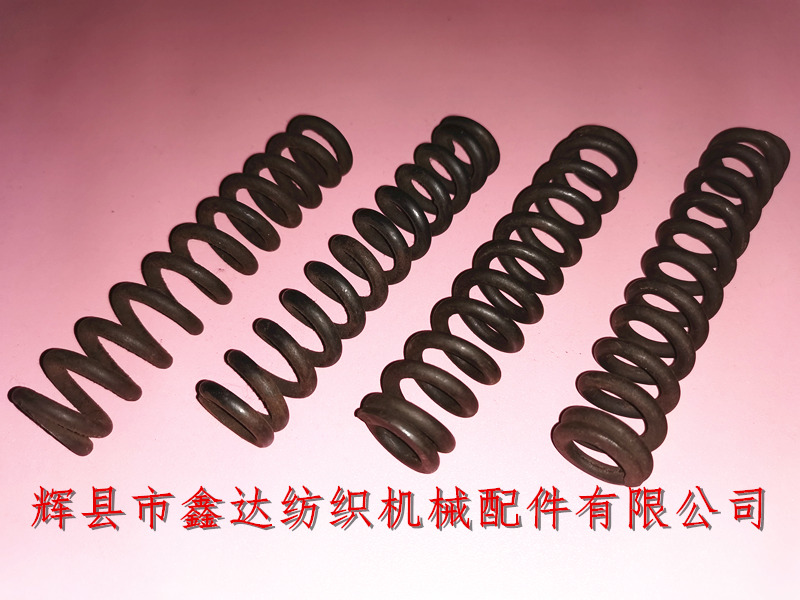

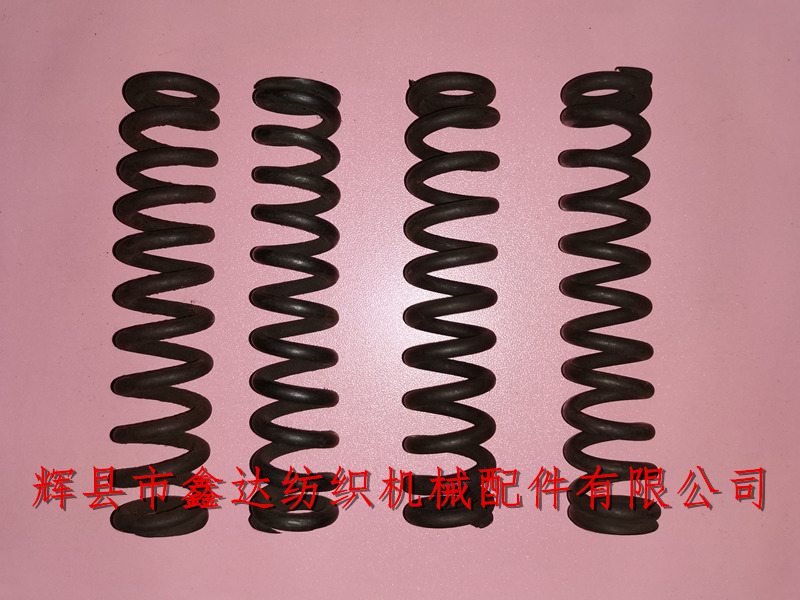

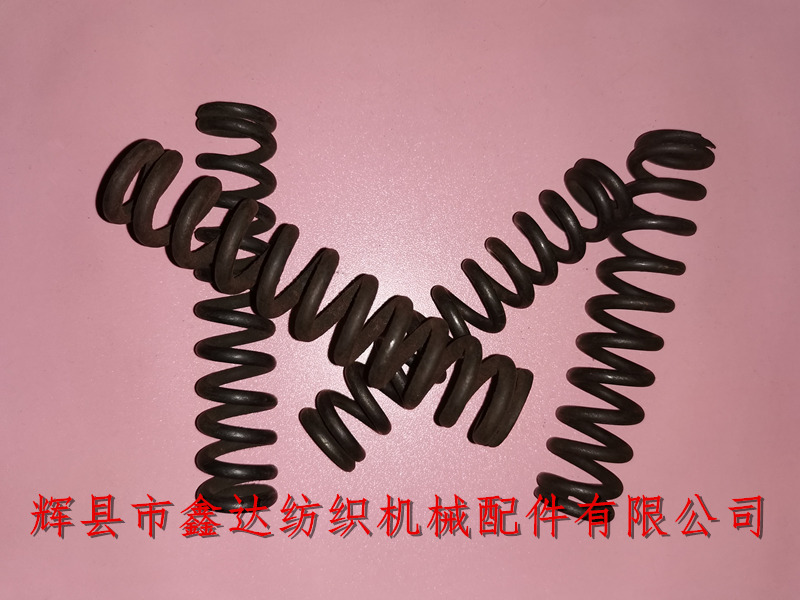

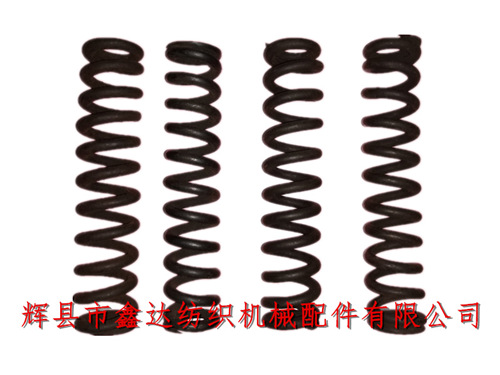

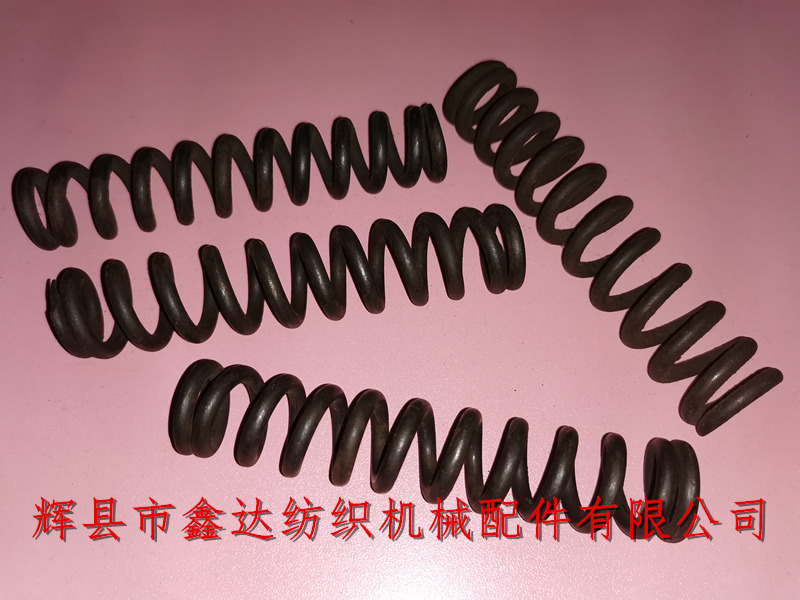

Huixian Xinda Textile machinery accessories provides textile spring loom starting compression spring F211. Textile hardware compression spring accessories F211 are processed from spring steel wire with a diameter of 4mm, with an inner diameter of 14mm, a length of 11cm and an outer diameter of 22mm, wound for 12 turns in total. The loom starting compression spring F211 is matched with F210 starting pull rod and F212 (G1515-0209) starting connecting rod, It is used to control the contact friction between the clutch and the belt disc.
There are many kinds of textile Hardware springs, various leaf springs, shuttle bottom springs, torsion springs, compression springs, tension springs and so on. They are widely used in old looms. Starting devices, shuttle changing devices, safety devices, let off devices and so on can be seen everywhere.
The starting arm is an important part of the clutch starting of the loom. The starting compression spring can indirectly transmit and control the left and right lateral movement of the shift fork. The fatigue resistance index of the compression spring directly affects their service life.
Buffer spring, beating rod torsion spring, tension spring, reed clamp tension spring, shuttle box leaf spring and other products belong to loom hardware accessories. If textile enterprises or trading companies need to purchase or customize textile springs, please contact our company. More than 500kg is required for customizing special springs.
The textile spring F211 can be used on old looms of models 1511, 1515 and GA615, and is not limited by door width and single and double beams.
