Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided shuttle textile equipment - Pegasus nylon shuttle anti weft shrinkage cotton loom shuttle (3 porcelain eyes). The overall dimensions of Pegasus shuttle for textile machine: length 343mm, bottom outer width 46.5mm, height 36.5mm, and the porcelain eye adopts the design of outer diameter 6.5mm * 17mm (inner hole 3mm), 6.5mm * 13.5mm (inner hole 2mm), Textile equipment - Pegasus shuttle has an inner cavity length of 235mm and is equipped with a weft tube with a length of 19cm.

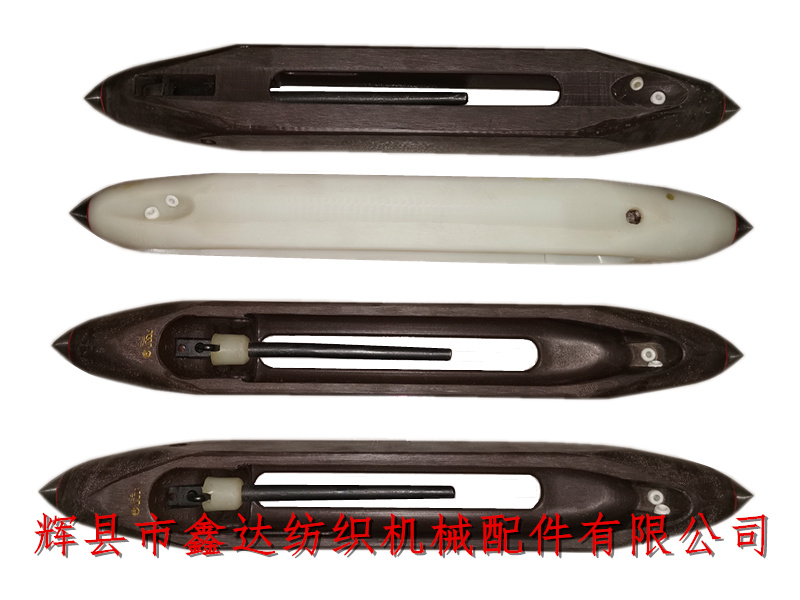

The inner cavity width (upper part) of Pegasus nylon shuttle is 31.5mm. The shuttle is divided into left mobile phone and right mobile phone. The above figure shows the left mobile phone shuttle. The slot width at the bottom of the shuttle is 16.5mm * the length is 144MM. The direction of three porcelain eyes: vertically downward, the side is inclined by 45 °, and horizontally (the double porcelain eye shuttle is added). The Pegasus shuttle is made of injection molding price and matched with round neck (circular arc) weft yarn tube. The material is rolling resistant and wear-resistant MC reinforced nylon.
Packing of Pegasus shuttle: 25 pieces / box. The weight of a single shuttle is about 0.4KG, that is, 10kg per box. The quality of textile equipment accessories (Pegasus shuttle accessories) shuttle core, shuttle bottom spring (shuttle spring) and nylon shuttle shaft (column) is stable and reliable, and the operation is light and smooth.

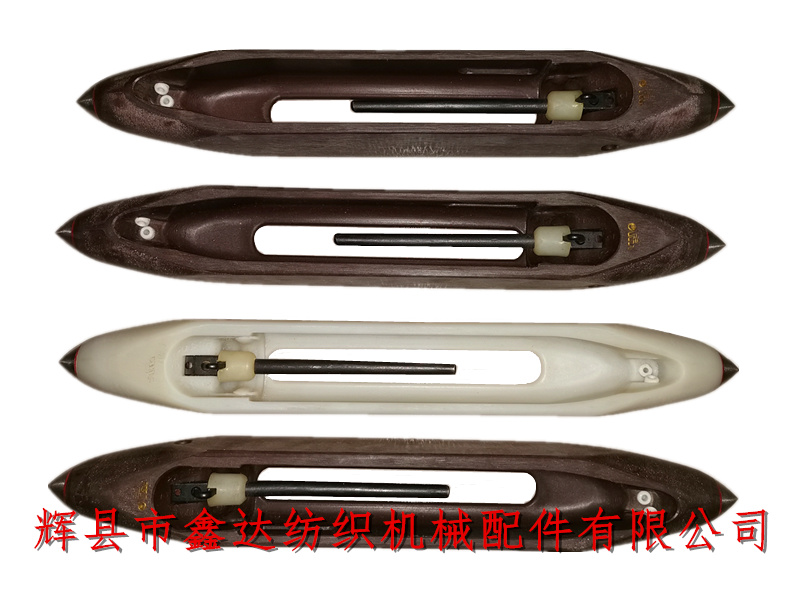

The four sides of the cotton loom shuttle Pegasus nylon shuttle are shown above. The colors are white and dark red. The shuttle loom shuttle is an important weft insertion carrier in the weaving process. Due to its high use frequency, it is a vulnerable accessory.
Xinda Textile Machinery Accessories Co., Ltd. is a domestic supplier of Pegasus nylon shuttle, Pegasus shuttle, anti weft shuttle and denim shuttle. In addition, our company can also provide various models and specifications of wood shuttle and nylon shuttle, with complete types and reliable quality. Customers at home and abroad are welcome to consult and negotiate!
